A few years ago, I published an article on using Poisson, negative binomial, and zero inflated models in analyzing count data (see Pick Your Poisson). The abstract of the article indicates:
School violence research is often concerned with infrequently occurring events such as counts of the number of bullying incidents or fights a student may experience. Analyzing count data using ordinary least squares regression may produce improbable predicted values, and as a result of regression assumption violations, result in higher Type I errors. Count data are optimally analyzed using Poisson-based regression techniques such as Poisson or negative binomial regression. We apply these techniques to an example study of bullying in a statewide sample of 290 high schools and explain how Poisson-based analyses, although less familiar to many researchers, can produce findings that are more accurate and reliable, and are easier to interpret in real-world contexts.
At the time, I had included syntax using both SAS and SPSS. This post extends the original article by now including R syntax. For the specifics on the whys and hows, consult the article (see Example 2). I show two examples: the first using data from Long (1990) and the second using Huang and Cornell (2012).
Example 1: Long (1990)
This replicates the SAS results where Long (1990) examined the relationship of gender (fem), marital status (mar), number of children (kid5), prestige of graduate program (phd), and the number of articles (ment) published by the individual’s mentor on the number of articles published by the scientist (art: the outcome).
library(dplyr) #basic data management & %>%
library(MASS) #for negative bin regression
library(stargazer) #for combining output
library(ggplot2) #for graphing
library(pscl) #for zero inflated models & predprob
library(reshape2) #convert wide to tall
library(summarytools) #freq
articles <- rio::import("http://faculty.missouri.edu/huangf/data/poisson/articles.csv")
head(articles)## fem ment phd mar kid5 art
## 1 0 7.999999 1.38 1 2 3
## 2 0 7.000000 4.29 0 0 0
## 3 0 47.000008 3.85 0 0 4
## 4 0 19.000002 3.59 1 1 1
## 5 0 0.000000 1.81 1 0 1
## 6 0 6.000000 3.59 1 1 1dim(articles)## [1] 915 6freq(articles$art)## Frequencies
## articles$art
##
## Freq % Valid % Valid Cum. % Total % Total Cum.
## ----------- ------ --------- -------------- --------- --------------
## 0 275 30.05 30.05 30.05 30.05
## 1 246 26.89 56.94 26.89 56.94
## 2 178 19.45 76.39 19.45 76.39
## 3 84 9.18 85.57 9.18 85.57
## 4 67 7.32 92.90 7.32 92.90
## 5 27 2.95 95.85 2.95 95.85
## 6 17 1.86 97.70 1.86 97.70
## 7 12 1.31 99.02 1.31 99.02
## 8 1 0.11 99.13 0.11 99.13
## 9 2 0.22 99.34 0.22 99.34
## 10 1 0.11 99.45 0.11 99.45
## 11 1 0.11 99.56 0.11 99.56
## 12 2 0.22 99.78 0.22 99.78
## 16 1 0.11 99.89 0.11 99.89
## 19 1 0.11 100.00 0.11 100.00
## <NA> 0 0.00 100.00
## Total 915 100.00 100.00 100.00 100.00mean(articles$art) #average number of articles## [1] 1.692896Based on the frequency count, 275 scientists had no publications (0) or 30.05%. If we compare this to predicted probability based on the mean: \(P(art = x) = \frac{\lambda^x e^{-\lambda}}{x!}\) where \(x = 0\).
1.69^0 * exp(-1.69) / factorial(0) #probability of zero articles is 18.5%## [1] 0.1845195#which is quite different from the 30.05%fr <- table(articles$art) %>% data.frame
names(fr) <- c('articles', 'freq')
fr$articles <- as.numeric(as.character(fr$articles)) #convert factor to numeric

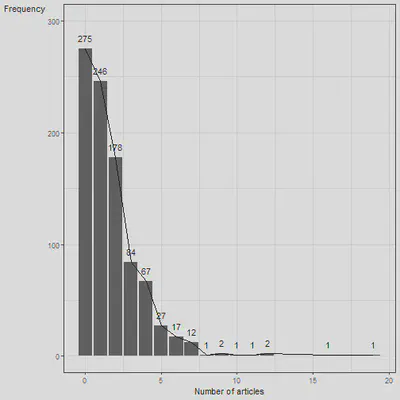

ggplot(fr, aes(x = articles, y = freq)) +
geom_col() +
theme_bw() +
lims(y = c(0, 300)) +
geom_line() +
labs(x = "Number of articles", y = "Frequency") +
geom_text(aes(x = articles, y = freq, label = freq, vjust = -1)) +
theme(axis.title.y = element_text(angle = 0))
With a Poisson distribution, the mean and the variances are both equal (\(\mu = \sigma^2\)): a condition (i.e., equidispersion) I am not sure how often occurs in reality. So a negative binomial should be more flexible as it does not have the assumption of equidispersion. With many zeroes, a zero inflated model should fit even better
The following code shows how to estimate different types of models:
### Run the models
linear <- glm(art ~ fem + ment + phd + mar + kid5, data = articles) #identity link, OLS
pois <- glm(art ~ fem + ment + phd + mar + kid5, "poisson", data = articles) #Poisson
negb <- glm.nb(art ~ fem + ment + phd + mar + kid5, data = articles) #negative binomial
#in the MASS package
zinb <- zeroinfl(art ~ fem + ment + phd + mar + kid5 | fem + ment + phd + mar + kid5,
dist = "negbin", data = articles) #zero inflated nb, in the pscl packageOf course, to interpet the results with the log or logit links, we need to exponentiate the coefficients to get the incidence rate ratios. The jtools package provides an easy way to do this:
library(jtools)
summ(pois, exp = T) #could exp the coefficients but this is## MODEL INFO:
## Observations: 915
## Dependent Variable: art
## Type: Generalized linear model
## Family: poisson
## Link function: log
##
## MODEL FIT:
## <U+03C7>²(5) = 183.03, p = 0.00
## Pseudo-R² (Cragg-Uhler) = 0.19
## Pseudo-R² (McFadden) = 0.05
## AIC = 3314.11, BIC = 3343.03
##
## Standard errors: MLE
## ------------------------------------------------------------
## exp(Est.) 2.5% 97.5% z val. p
## ----------------- ----------- ------ ------- -------- ------
## (Intercept) 1.36 1.11 1.66 2.96 0.00
## fem 0.80 0.72 0.89 -4.11 0.00
## ment 1.03 1.02 1.03 12.73 0.00
## phd 1.01 0.96 1.07 0.49 0.63
## mar 1.17 1.04 1.32 2.53 0.01
## kid5 0.83 0.77 0.90 -4.61 0.00
## ------------------------------------------------------------#useful because we get the 95% CI as well
summ(negb, exp = T) #difference in marital status## MODEL INFO:
## Observations: 915
## Dependent Variable: art
## Type: Generalized linear model
## Family: Negative Binomial(2.2644)
## Link function: log
##
## MODEL FIT:
## <U+03C7>²() = , p =
## Pseudo-R² (Cragg-Uhler) = 0.10
## Pseudo-R² (McFadden) = 0.03
## AIC = 3135.92, BIC = 3169.65
##
## Standard errors: MLE
## ------------------------------------------------------------
## exp(Est.) 2.5% 97.5% z val. p
## ----------------- ----------- ------ ------- -------- ------
## (Intercept) 1.29 0.99 1.69 1.86 0.06
## fem 0.81 0.70 0.93 -2.98 0.00
## ment 1.03 1.02 1.04 9.05 0.00
## phd 1.02 0.95 1.09 0.43 0.67
## mar 1.16 0.99 1.37 1.83 0.07
## kid5 0.84 0.76 0.93 -3.34 0.00
## ------------------------------------------------------------summary(zinb) #more complex, has two parts to it. ##
## Call:
## zeroinfl(formula = art ~ fem + ment + phd + mar + kid5 | fem + ment +
## phd + mar + kid5, data = articles, dist = "negbin")
##
## Pearson residuals:
## Min 1Q Median 3Q Max
## -1.2942 -0.7601 -0.2909 0.4448 6.4155
##
## Count model coefficients (negbin with log link):
## Estimate Std. Error z value Pr(>|z|)
## (Intercept) 0.4167466 0.1435964 2.902 0.00371 **
## fem -0.1955076 0.0755926 -2.586 0.00970 **
## ment 0.0247862 0.0034927 7.097 1.28e-12 ***
## phd -0.0006998 0.0362697 -0.019 0.98461
## mar 0.0975826 0.0844520 1.155 0.24789
## kid5 -0.1517321 0.0542061 -2.799 0.00512 **
## Log(theta) 0.9763578 0.1354696 7.207 5.71e-13 ***
##
## Zero-inflation model coefficients (binomial with logit link):
## Estimate Std. Error z value Pr(>|z|)
## (Intercept) -0.19161 1.32280 -0.145 0.88483
## fem 0.63587 0.84890 0.749 0.45382
## ment -0.88227 0.31622 -2.790 0.00527 **
## phd -0.03773 0.30801 -0.123 0.90250
## mar -1.49944 0.93866 -1.597 0.11017
## kid5 0.62841 0.44277 1.419 0.15583
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Theta = 2.6548
## Number of iterations in BFGS optimization: 27
## Log-likelihood: -1550 on 13 Dftmp <- summary(zinb) #doing this manually
tmp$coefficients$count[-7, 1] %>% exp()## (Intercept) fem ment phd mar kid5
## 1.5170181 0.8224171 1.0250959 0.9993005 1.1025025 0.8592185tmp$coefficients$zero[-7, 1] %>% exp()## (Intercept) fem ment phd mar kid5
## 0.8256318 1.8886654 0.4138409 0.9629702 0.2232558 1.8746261Note: the logit portion predicts zeroes (so coefficients may seem like they are in the opposite direction). Interpret as ORs. Again, consult the article for interpretation of results. Can also consult the AIC values to help with model selection:
tmp <- data.frame(OLS = AIC(linear), pois = AIC(pois),
negb = AIC(negb), zinb = AIC(zinb))
knitr::kable(tmp, align = "l")| OLS | pois | negb | zinb |
|---|---|---|---|
| 3702.186 | 3314.113 | 3135.917 | 3125.982 |
#zinb has the lowest, close to negbPlotting results

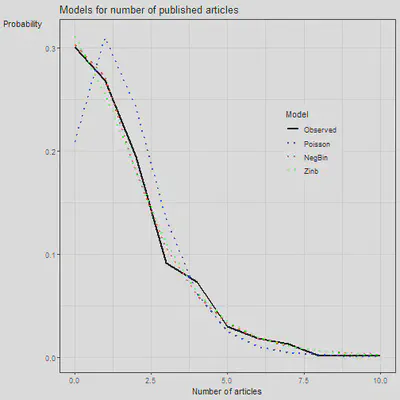

I replicate the graph found in the SAS post for plotted results. The predicted probabilities are based on the probability density function. Can use the predprob function in the pscl package
po.p <- predprob(pois) %>% colMeans
po.nb <- predprob(negb) %>% colMeans
po.zinb <- predprob(zinb) %>% colMeans
df <- data.frame(x = 0:max(articles$art), Poisson = po.p,
NegBin = po.nb, Zinb = po.zinb)
obs <- table(articles$art) %>% prop.table() %>% data.frame #Observed
names(obs) <- c("x", 'Observed')
p1 <- predict(linear) %>% round() %>% table %>% prop.table %>% data.frame #for OLS
names(p1) <- c('x', 'OLS')
tmp <- merge(p1, obs, by = 'x', all = T)
tmp$x <- as.numeric(as.character(tmp$x))
comb <- merge(tmp, df, by = 'x', all = T)
comb[is.na(comb)] <- 0
comb2 <- comb[1:11, ] #just for the first 11 results, including zero
mm <- melt(comb2, id.vars = 'x', value.name = 'prob', variable.name = 'Model')
mm <- filter(mm, Model != "OLS") #can include the linear model too if you want
#the SAS note does not, so I am not including it
ggplot(mm, aes(x = x, y = prob, group = Model, col = Model)) +
geom_line(aes(lty = Model), lwd = 1) +
theme_bw() +
labs(x = "Number of articles", y = 'Probability',
title = "Models for number of published articles") +
scale_color_manual(values = c('black', 'blue', 'red', 'green')) +
scale_linetype_manual(values = c('solid', 'dotted', 'dotted', 'dotted')) +
theme(legend.position=c(.75, .65), axis.title.y = element_text(angle = 0))
Plot shows that the negative binomial and the zero inflated nb almost overlap with the observed observations (a good approximation).
Example 2: Bullying in school (Huang & Cornell, 2012)
This data is not available for download though (w/c is why I started of with the Long example).
x <- rio::import("C:/Users/huangf/Box Sync/Bully/Bully/CountJK/MASTERDATA7-09.sav")
x2 <- dplyr::select(x, NEWBULLY, TOTAL_F_R,
DIVERSITYINDEX, PROPNONWHITE, PD1000, siz1000
)
library(tableone)
t1 <- CreateTableOne(data = x2)
print(t1)##
## Overall
## n 290
## NEWBULLY (mean (SD)) 5.42 (5.49)
## TOTAL_F_R (mean (SD)) 0.30 (0.16)
## DIVERSITYINDEX (mean (SD)) 0.37 (0.21)
## PROPNONWHITE (mean (SD)) 0.34 (0.26)
## PD1000 (mean (SD)) 0.94 (1.26)
## siz1000 (mean (SD)) 1.21 (0.69)cov(x2) %>% round(3)## NEWBULLY TOTAL_F_R DIVERSITYINDEX PROPNONWHITE PD1000 siz1000
## NEWBULLY 30.148 -0.212 0.491 0.329 1.650 2.131
## TOTAL_F_R -0.212 0.025 -0.006 0.012 0.014 -0.046
## DIVERSITYINDEX 0.491 -0.006 0.044 0.035 0.104 0.084
## PROPNONWHITE 0.329 0.012 0.035 0.067 0.181 0.066
## PD1000 1.650 0.014 0.104 0.181 1.597 0.364

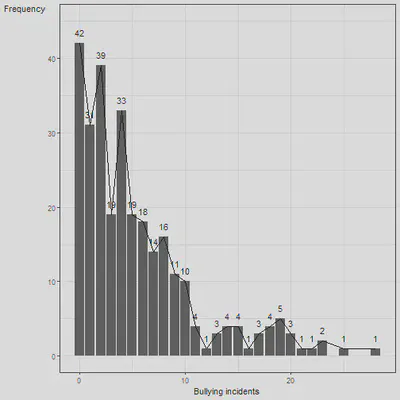

## siz1000 2.131 -0.046 0.084 0.066 0.364 0.473Visualize the outcome variable:
freq(x2$NEWBULLY)## Frequencies
## x2$NEWBULLY
## Label: New raw "bullying" without threatening, USE
## Type: Numeric
##
## Freq % Valid % Valid Cum. % Total % Total Cum.
## ----------- ------ --------- -------------- --------- --------------
## 0 42 14.48 14.48 14.48 14.48
## 1 31 10.69 25.17 10.69 25.17
## 2 39 13.45 38.62 13.45 38.62
## 3 19 6.55 45.17 6.55 45.17
## 4 33 11.38 56.55 11.38 56.55
## 5 19 6.55 63.10 6.55 63.10
## 6 18 6.21 69.31 6.21 69.31
## 7 14 4.83 74.14 4.83 74.14
## 8 16 5.52 79.66 5.52 79.66
## 9 11 3.79 83.45 3.79 83.45
## 10 10 3.45 86.90 3.45 86.90
## 11 4 1.38 88.28 1.38 88.28
## 12 1 0.34 88.62 0.34 88.62
## 13 3 1.03 89.66 1.03 89.66
## 14 4 1.38 91.03 1.38 91.03
## 15 4 1.38 92.41 1.38 92.41
## 16 1 0.34 92.76 0.34 92.76
## 17 3 1.03 93.79 1.03 93.79
## 18 4 1.38 95.17 1.38 95.17
## 19 5 1.72 96.90 1.72 96.90
## 20 3 1.03 97.93 1.03 97.93
## 21 1 0.34 98.28 0.34 98.28
## 22 1 0.34 98.62 0.34 98.62
## 23 2 0.69 99.31 0.69 99.31
## 25 1 0.34 99.66 0.34 99.66
## 28 1 0.34 100.00 0.34 100.00
## <NA> 0 0.00 100.00
## Total 290 100.00 100.00 100.00 100.00moments::skewness((x2$NEWBULLY)) #positively skewed## [1] 1.51982fr <- table(x2$NEWBULLY) %>% data.frame
names(fr) <- c('bullyinc', 'freq')
fr$bullyinc <- as.numeric(as.character(fr$bullyinc)) #convert factor to numeric
ggplot(fr, aes(x = bullyinc, y = freq)) +
geom_col() +
theme_bw() +
lims(y = c(0, 45)) +
geom_line() +
labs(x = "Bullying incidents", y = "Frequency") +
geom_text(aes(x = bullyinc, y = freq, label = freq, vjust = -1)) +
theme(axis.title.y = element_text(angle = 0))
Run the models:
m1 <- glm(NEWBULLY ~ . , data = x2)
m2 <- glm(NEWBULLY ~ . , family = poisson, data = x2)
m3 <- glm(NEWBULLY ~ . , family = quasipoisson, data = x2) #for overdispersion
m4 <- glm.nb(NEWBULLY ~ ., data = x2)
m5 <- zeroinfl(NEWBULLY ~ . | siz1000, dist = "negbin", data = x2)We can use jtools again but just showing raw output all together. Note the Poisson model has standard errors that are too low (compare to the quasi Poisson and the negative binomial).
stargazer(m1, m2, m3, m4, m5, type = 'text', star.cutoffs = c(.05, .01, .001),
no.space = T, digits = 2)##
## ==================================================================================
## Dependent variable:
## ----------------------------------------------------------------
## NEWBULLY
## normal Poisson glm: quasipoisson negative zero-inflated
## link = log binomial count data
## (1) (2) (3) (4) (5)
## ----------------------------------------------------------------------------------
## TOTAL_F_R 1.19 -0.26 -0.26 -0.42 -0.21
## (2.39) (0.25) (0.47) (0.46) (0.46)
## DIVERSITYINDEX 5.48** 1.09*** 1.09** 0.90* 0.89*
## (2.06) (0.22) (0.41) (0.39) (0.37)
## PROPNONWHITE -2.07 -0.09 -0.09 0.01 -0.09
## (1.85) (0.20) (0.38) (0.35) (0.36)
## PD1000 0.003 -0.01 -0.01 -0.02 -0.01
## (0.26) (0.02) (0.04) (0.05) (0.05)
## siz1000 3.93*** 0.64*** 0.64*** 0.72*** 0.65***
## (0.56) (0.05) (0.10) (0.10) (0.11)
## Constant -1.00 0.46*** 0.46* 0.45* 0.56**
## (1.11) (0.11) (0.21) (0.21) (0.21)
## ----------------------------------------------------------------------------------
## Observations 290 290 290 290 290
## Log Likelihood -846.38 -892.53 -742.12 -736.73
## theta 2.18*** (0.29)
## Akaike Inf. Crit. 1,704.77 1,797.06 1,496.23
## ==================================================================================
## Note: *p<0.05; **p<0.01; ***p<0.001#have to exponentiate results to get the IRR
#does not show the logit results for the ZI modelGraph the results:
po.p <- predprob(m2) %>% colMeans
po.nb <- predprob(m4) %>% colMeans
po.zinb <- predprob(m5) %>% colMeans
df <- data.frame(x = 0:max(x2$NEWBULLY), Poisson = po.p,
NegBin = po.nb, Zinb = po.zinb)
obs <- table(x2$NEWBULLY) %>% prop.table() %>% data.frame
names(obs) <- c("x", 'Observed')
p1 <- predict(m1) %>% round() %>% table %>% prop.table %>% data.frame
names(p1) <- c('x', 'OLS')
p1 <- p1[-1, ] #there is a negative value
tmp <- merge(p1, obs, by = 'x', all = T)
tmp$x <- as.numeric(as.character(tmp$x))
comb <- merge(tmp, df, by = 'x', all = T)
comb[is.na(comb)] <- 0
mm <- melt(comb, id.vars = 'x', value.name = 'prob', variable.name = 'Model')
ggplot(mm, aes(x = x, y = prob, group = Model, col = Model)) +
geom_line(aes(lty = Model), lwd = 1) +
theme_bw() +
labs(x = "Number of bullying incidents", y = 'Probability',
title = "Comparison of models") +
scale_color_manual(values = c('brown', 'black', 'blue', 'green', 'red')) +
scale_linetype_manual(values = c('dotted', 'solid', 'dotted', 'dotted', 'dashed')) +
theme(legend.position=c(.65, .65), legend.background = element_rect(),
axis.title.y = element_text(angle = 0))
Other notes to self: Ignore these
pdf.pois <- function(x){
tmp <- data.frame()
for (i in 0:10){
pp <- x^i * exp(-x) / factorial(i)
tmp <- rbind(tmp, data.frame(i, pp))
}
return(round(tmp, 3))
}
dpois(0, 1.69)## [1] 0.1845195dpois(1, 1.69)## [1] 0.311838pdf.pois(1.69)## i pp
## 1 0 0.185
## 2 1 0.312
## 3 2 0.264
## 4 3 0.148
## 5 4 0.063
## 6 5 0.021
## 7 6 0.006
## 8 7 0.001
## 9 8 0.000
## 10 9 0.000
## 11 10 0.000nn <- matrix(NA, nrow = nobs(pois), ncol = max(articles$art) + 1)
pp <- fitted(pois)
for (i in 0:max(articles$art)){
nn[, i+1] <- dpois(i, pp)
}
head(nn)## [,1] [,2] [,3] [,4] [,5] [,6]
## [1,] 0.255039989 0.34847004 0.23806340 0.1084248 0.03703614 0.01012075
## [2,] 0.180268815 0.30885567 0.26458215 0.1511034 0.06472160 0.02217758
## [3,] 0.008802787 0.04166084 0.09858384 0.1555222 0.18400942 0.17417179
## [4,] 0.106495003 0.23851230 0.26709290 0.1993988 0.11164627 0.05000987
## [5,] 0.197692617 0.32046801 0.25974604 0.1403531 0.05687955 0.01844083
## [6,] 0.200521047 0.32220445 0.25886487 0.1386511 0.05569741 0.01789932
## [,7] [,8] [,9] [,10] [,11]
## [1,] 0.002304723 0.0004498606 7.683253e-05 1.166433e-05 1.593738e-06
## [2,] 0.006332831 0.0015500112 3.319555e-04 6.319348e-05 1.082698e-05
## [3,] 0.137383425 0.0928846765 5.494926e-02 2.889529e-02 1.367524e-02
## [4,] 0.018667495 0.0059726844 1.672096e-03 4.161024e-04 9.319266e-05
## [5,] 0.004982226 0.0011537709 2.337889e-04 4.210906e-05 6.826055e-06
## [6,] 0.004793546 0.0011003489 2.210100e-04 3.945854e-05 6.340341e-06
## [,12] [,13] [,14] [,15] [,16]
## [1,] 1.979618e-07 2.254018e-08 2.369033e-09 2.312066e-10 2.106038e-11
## [2,] 1.686357e-06 2.407705e-07 3.173181e-08 3.883308e-09 4.435530e-10
## [3,] 5.883693e-03 2.320473e-03 8.447748e-04 2.855753e-04 9.010257e-05
## [4,] 1.897451e-05 3.541367e-06 6.101114e-07 9.760288e-08 1.457313e-08
## [5,] 1.005938e-06 1.358890e-07 1.694475e-08 1.962011e-09 2.120335e-10
## [6,] 9.261717e-07 1.240172e-07 1.532887e-08 1.759355e-09 1.884664e-10
## [,17] [,18] [,19] [,20]
## [1,] 1.798471e-12 1.445479e-13 1.097227e-14 7.890416e-16
## [2,] 4.749638e-11 4.786814e-12 4.556265e-13 4.108567e-14
## [3,] 2.665170e-05 7.419657e-06 1.950828e-06 4.859295e-07
## [4,] 2.039926e-09 2.687492e-10 3.343922e-11 3.941705e-12
## [5,] 2.148220e-11 2.048444e-12 1.844785e-13 1.573933e-14
## [6,] 1.892716e-11 1.788991e-12 1.597008e-13 1.350595e-14library(dplyr)
colMeans(nn) %>% round(2)## [1] 0.21 0.31 0.24 0.13 0.06 0.02 0.01 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
## [16] 0.00 0.00 0.00 0.00 0.00predprob(pois) %>% colMeans %>% round(2)## 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
## 0.21 0.31 0.24 0.13 0.06 0.02 0.01 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
## 16 17 18 19
## 0.00 0.00 0.00 0.00#identical

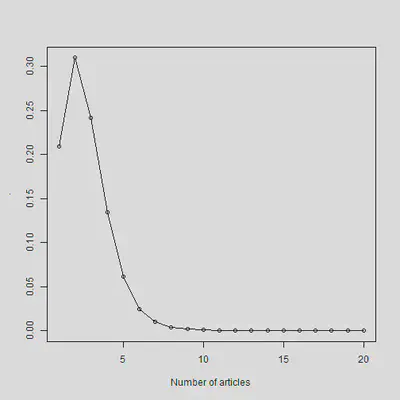

colMeans(nn) %>% plot(., xlab = 'Number of articles')
colMeans(nn) %>% lines

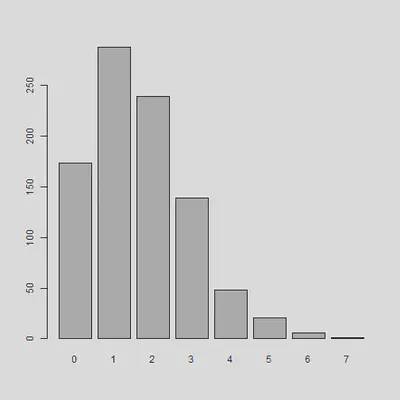

Simulating:
set.seed(123)
sim.p <- rpois(915, 1.693)
sim.p %>% table## .
## 0 1 2 3 4 5 6 7
## 173 288 239 139 48 21 6 1sim.p %>% table %>% prop.table %>% round(2)## .
## 0 1 2 3 4 5 6 7
## 0.19 0.31 0.26 0.15 0.05 0.02 0.01 0.00sim.p %>% table %>% barplot() #quick and dirty
Dispersion tests:
AER::dispersiontest(m2) #tests for equidispersion##
## Overdispersion test
##
## data: m2
## z = 5.638, p-value = 8.601e-09
## alternative hypothesis: true dispersion is greater than 1
## sample estimates:
## dispersion
## 3.455817sqrt(3.4558) ## [1] 1.858978#indicates how much larger the poisson standard should beCompare standard errors in models 2 and 3 in example 2.
Huang, F., & Cornell, D. (2012). Pick your Poisson: Regression models for count data in school violence research. Journal of School Violence, 11, 187-206. doi: 10.1080/15388220.2012.682010
Long, J. S. (1990). The origins of sex differences in science. Social Forces, 68, 1297-1315.
##END
